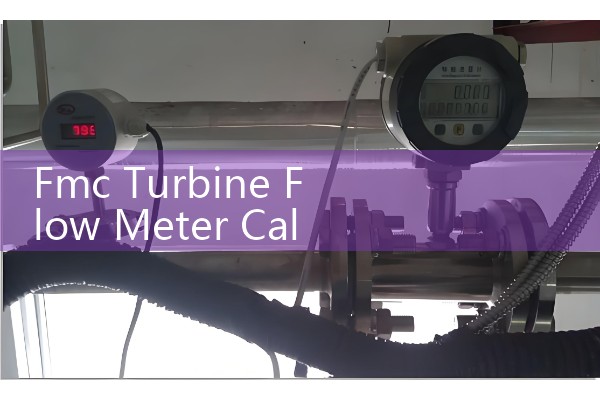

FMC Turbine Flow Meter Calibration: Proving K-Factors for Custody Transfer Petroleum Infrastructure
Quick Answer
FMC turbine flow meter calibration for custody transfer means proving the meter against a known volume standard to confirm K-factors across the full flow range. A reliable K-factor keeps billing and allocation accurate in petroleum terminals, pipelines, and loading systems. Silver Instruments recommends proving every 3 to 6 months with actual product at operating temperature and pressure.
Why Custody Transfer Demands a Proved K-Factor
Custody transfer is not a routine flow check. The meter pulse output becomes the basis for money, taxes, and product ownership. A small K-factor shift on a crude oil line can create a large commercial exposure. Petroleum infrastructure operators in Southeast Asia, the Middle East, and Latin America often run FMC turbine meters in DN80 to DN300 sizes with custody transfer accuracy targets from 0.15 to 0.25 percent.
In practice, proving is more important than the original factory calibration. Factory calibration uses a reference fluid. Field proving uses real product. Viscosity, temperature, and pressure change rotor drag and pulse behavior. That is why a terminal in Vietnam may prove a DN150 FMC turbine meter on gasoil every month during commercial loading. Another pipeline operator in Oman proves a DN250 crude oil turbine meter every two weeks because allocation depends on the meter factor.
K-Factor Proving Methods for FMC Turbine Meters
There are two main field proving methods for petroleum custody transfer. Both compare meter pulses to a known volume.
Pipe prover method. A ball or piston prover displaces a known volume through the turbine meter. The meter pulse count is divided by prover volume. This gives the K-factor. A fixed ball prover in a Nigerian crude terminal can achieve repeatability of 0.02 percent or better. Mobile provers work well for jetty lines, truck loading, and offshore allocation skids.
Master meter method. A reference meter with lower uncertainty is installed in series with the turbine meter. Silver Instruments supplies Coriolis master meters for this role. A Coriolis master meter on a diesel line in Colombia can prove a DN100 FMC turbine meter in under one hour. The master meter method is faster and needs less space than a pipe prover.
Computational adjustments may be useful for trending. They do not replace physical proving for custody transfer in most jurisdictions.
K-Factor Calculation and Acceptance Limits
K-factor is the ratio of pulses to volume. For example, a DN100 FMC turbine meter produces 12,450 pulses over a prover volume of 1.000 m3. The K-factor is 12,450 pulses per cubic meter. A Middle East crude line may record K-factor in pulses per barrel. If a second proving run produces 12,460 pulses per cubic meter, the repeatability is 0.08 percent. This is outside a tight custody transfer limit of 0.02 percent and calls for a third run or meter inspection.
Most petroleum terminals accept a K-factor curve when linearity is within 0.15 percent across the operating range. Repeatability below 0.05 percent is common for clean light products. For heavier crude or fuel oil, repeatability may shift to 0.10 percent because of viscosity changes. Record the average K-factor, the meter factor, pressure, temperature, and product type in the calibration report.
Field Conditions That Change K-Factor
We have seen K-factors drift on customer sites for reasons that look minor. Temperature changes from 20 °C to 45 °C
Most engineers skip this part. Before each proving run, check upstream straight pipe length, strainer condition, and air elimination. A typical installation needs 10D upstream and 5D downstream straight lengths. If a strainer is partially blocked, the K-factor will shift even when the meter is healthy.
Recommended Meter Pairings for Petroleum Infrastructure
Silver Instruments supports FMC turbine meter calibration by supplying reference meters, backup metering, and pressure transmitters. For master meter proving, the Silver Instruments SCF Series Coriolis mass flow meter covers DN15 to DN200 and offers density measurement from 0.5 to 1200 kg/m3. For heavy fuel oil and bunker batching, the Silver Instruments EGM Series oval gear flow meter handles viscosity up to 2000 cP and line sizes from DN10 to DN100. For pipeline leak detection and cross-checking, the Silver Instruments SUF Series ultrasonic flow meter provides clamp-on measurement without process shutdown.
Pair these with our pressure transmitters for live pressure compensation during proving. A stable pressure reading of 0.25 percent accuracy helps you correct the meter factor when operating pressure moves from 5 bar to 40 bar.
Calibration Documentation and Traceability
A custody transfer audit requires a complete trail. Keep the prover certificate, turbine meter serial number, K-factor history, product type, temperature, pressure, and reference meter data. The proving report should follow API MPMS Chapter 4.5 and Chapter 5.1 where applicable. ISO 7278-2 gives guidance on hydrocarbon turbine meters. Silver Instruments provides calibration support data for our reference meters using accredited laboratories in China.
Send us your pressure in bar, temperature in °C, pipe size in DN, and flow range. We will recommend a reference meter or pressure transmitter for your FMC turbine meter proving program.
Contact Silver Instruments. Tel: +86-25-68650347. Whatsapp: +86-25-52155837. WeChat: +86 15365082610. Website: flow-meter.com.au
FAQ
How often should an FMC turbine flow meter be proved?
Every 3 to 6 months for custody transfer. Some high value crude and LPG lines prove before each batch or every two weeks.
What is the difference between K-factor and meter factor?
K-factor is pulses per unit volume. Meter factor is the ratio of actual volume to indicated volume. Meter factor equals K-factor reference divided by K-factor field.
Can a Coriolis master meter prove a turbine meter for custody transfer?
Yes. A Coriolis master meter can be used when its uncertainty is lower than the turbine meter and traceability is documented.
What causes a sudden K-factor shift in an FMC turbine meter?
Common causes are rotor damage, bearing wear, deposits, gas breakout, or a partially blocked strainer. Check installation before replacing the meter.
Does Silver Instruments sell FMC turbine meters?
Silver Instruments supplies reference master meters, pressure transmitters, and flow meters for proving support. We do not sell FMC branded turbine meters.
