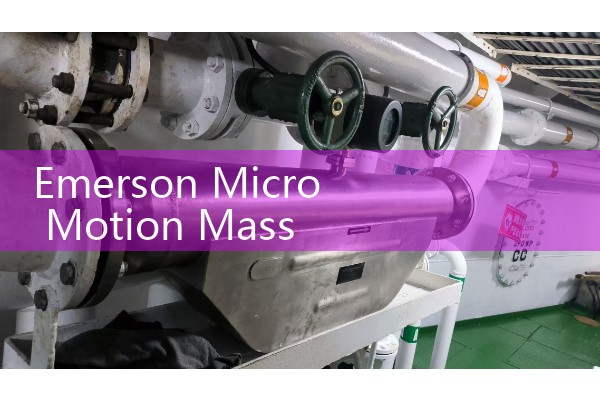

Emerson Micro Motion Mass Flow Meter Sizing: Elite Series Selection for Extreme Conditions
Quick Answer
For extreme condition mass flow measurement, start with real process numbers: pressure in bar, temperature in °C, flow range in kg/h, density in kg/m3, viscosity in cP, and pipe size in DN. The Emerson Micro Motion Elite series covers many tough applications but long lead times and high replacement part costs can push a project off budget. Silver Automation Instruments supplies compatible Coriolis mass flow meters with similar high pressure and high temperature ratings for users in Southeast Asia, Oceania, Latin America, Africa, and the Middle East.
Start With Real Process Data
Do not start with a pipe diameter and hope the meter fits. Start with mass flow minimum, normal, and maximum values. Add density at operating conditions and viscosity in cP for non-water fluids. The difference between 150 °C and 200 °C changes the transmitter selection. The difference between 40 bar and 100 bar changes the flange rating and body material.
Here is the thing. Most engineers skip peak pressure and temperature values. They size for normal operation and then see drift or mechanical damage when the pump starts or the steam trace overheats. Last year a customer in Vietnam asked us to check a urea fertilizer line at 165 °C and 42 bar. The original vendor quoted a standard 316L DN25 meter. That choice would have failed quickly because of carbamate corrosion. Silver Instruments supplied a DN25 Coriolis meter with Hastelloy C-22 wetted parts and a remote transmitter rated for 180 °C.
Emerson Micro Motion Elite Series Sizing Limits
The Elite series includes models such as CMF010, CMF025, CMF050, CMF100, and CMF200. Some Elite sensors handle up to 350 °C with a remote transmitter. High pressure versions go to 100 bar or higher with special flanges. The exact limit depends on wetted material, process connection, and mounting location.
For a DN25 line running at 120 bar and 200 °C, do not assume every Elite model works. Check the sensor model code for pressure class and temperature limits. In many chemical batching jobs, an Elite CMF050 with 316L wetted parts is enough. For seawater or brine, request Hastelloy C-22 or Super Duplex. For high temperature gas, specify the remote mount electronics option and a PT100 RTD.
Silver Instruments Fit for Extreme Condition Projects
Silver Automation Instruments manufactures Coriolis mass flow meters in Nanjing, China. The SIL-CMF series covers DN10 to DN200. Outputs include 4-20 mA HART, Modbus RTU, pulse, and optional PROFIBUS DP. Wetted materials include 316L stainless steel, Hastelloy C-22, and Super Duplex. Pressure ratings go up to 100 bar standard and 250 bar on request. Temperature ratings go up to 200 °C standard and 350 °C with remote electronics.
We saw this on a desalination plant project in Saudi Arabia. The EPC specified an Emerson Micro Motion Elite meter for brine discharge at 28 bar and 65 °C. The order lead time was 14 weeks. The contractor asked Silver Instruments for a faster option. We supplied a DN80 SIL-CMF with Super Duplex wetted parts in 4 weeks. The meter has been running for 18 months with no drift. The calibration report matched the plant reference within 0.15 percent mass flow accuracy.
Pairing examples include the following. For DN15, 0 to 300 kg/h, 150 bar, 120 °C liquid chemical, use an Elite CMF025 or a Silver Instruments SIL-CMF-DN15 with 316L remote mount. For DN50, 0 to 20 000 kg/h, 60 bar, 180 °C thermal oil, use an Elite CMF100 or a Silver Instrumen
Sizing Checklist for Extreme Conditions
First, collect mass flow minimum, normal, and maximum in kg/h or t/h. Second, get density at operating and ambient conditions. Third, measure viscosity in cP if the fluid is not water. Molasses, crude oil, and polymers change the pressure drop fast. Fourth, confirm pressure and temperature peaks, not averages. Fifth, specify wetted material based on chloride, acid, or abrasive solids. Sixth, confirm hazardous area certification. Many plants in the Middle East and Southeast Asia need ATEX Zone 1 or IECEx. Silver Instruments supplies Ex d and Ex ia approvals.
Common Mistakes on Extreme Condition Lines
We have seen this on customer sites many times. A paint manufacturer in Malaysia ordered a DN25 Coriolis meter for solvent and resin batching at 70 °C and 20 bar. The meter drifted after one year. The root cause was cyclic pressure spikes during pump start. The sensor body was rated for 40 bar but the spikes reached 55 bar. Silver Instruments supplied a replacement with a 100 bar sensor body and damping set to 0.5 seconds. Since then the meter has been stable.
On a crude oil line in Nigeria, a DN50 meter showed a 0.4 percent low reading because of pipe stress. Zero calibration and proper supports fixed the offset. The sensor itself was fine. Before replacing an expensive Emerson Micro Motion Elite sensor, check installation stress, grounding, and air bubbles.
FAQ: Five Sizing Questions for Extreme Conditions
Q: Can I replace an Emerson Micro Motion Elite sensor with a Silver Instruments Coriolis meter without changing the pipe?
A: In many cases yes. Face to face length may differ. Send pipe layout, flange standard, and line size. Silver Instruments can match ANSI, DIN, or JIS flange dimensions for DN15 to DN100 in most cases.
Q: What pressure and temperature limits apply for extreme condition sizing?
A: Standard SIL-CMF meters cover up to 100 bar and 200 °C. Remote transmitter versions cover up to 350 °C. Special high pressure bodies go to 250 bar. Verify material derating for 316L at high temperature.
Q: Does Silver Instruments offer hazardous area certification?
A: Yes. Transmitters are available with Ex d, Ex ia, ATEX, IECEx, and NEPSI certification. Users in Saudi Arabia, Nigeria, and Indonesia often require IECEx or ATEX for gas and chemical plants.
Q: How long does delivery take compared to Emerson Micro Motion?
A: Standard SIL-CMF Coriolis meters ship in 2 to 4 weeks for DN15 to DN50. Larger sizes or special wetted materials may take 5 to 7 weeks. Emerson lead times vary by region and model. For urgent replacement, ask for a stock check.
Q: What data should I send for a sizing check?
A: Send fluid name, flow range in kg/h or t/h, density in kg/m3, viscosity in cP, pipe size in DN, pressure in bar, temperature in °C, and hazardous area requirement. A photo of the existing nameplate also helps.
Get a Sizing Check From Silver Instruments
For a firm quote and sizing check, send your pressure in bar, temperature in °C, pipe size in DN, flow range in kg/h, and fluid name to Silver Automation Instruments. Use WhatsApp +86-25-52155837 or WeChat +86 15365082610. You can also call +86-25-68650347. For full specifications, visit flow-meter.com.au and search for the SIL-CMF Coriolis mass flow meter page.
