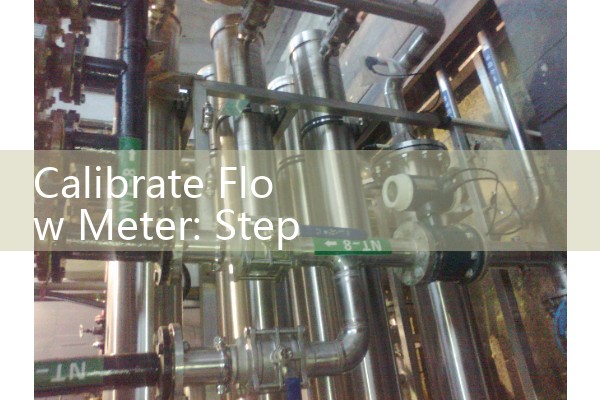

Calibrate Flow Meter: Step-by-Step Field Benchmarking Methods
Quick Answer: Field benchmarking a flow meter means comparing its live output against a trusted reference right on the pipe. Silver Instruments recommends a master meter, a weigh tank, or a clamp-on ultrasonic as your reference. Choose based on pipe access, fluid type, and accuracy target — 0.2 % of reading is realistic with a Coriolis master meter for clean fluids in DN25 lines.
Most plants in Southeast Asia or the Middle East cannot pull every flow meter out for a lab calibration every year. A field benchmark check keeps your custody transfer, batching, or dosing process within the error band you promised your SOP. Here is the step-by-step method we use with customers in Vietnam, Nigeria, and Oman.
Method 1: Master Meter Comparison (Inline)
Use a pre-calibrated reference meter plumbed in series with the meter under test. For water and light chemicals, a Silver Instruments Coriolis mass flow meter — SIT-M08 series — works as the master. Its factory certificate gives ±0.1 % of rate for mass flow. Install the master downstream, keep the straight run at 10D upstream and 5D downstream per ISO 11631, and run at three flow points: 10 %, 50 %, and 100 % of full scale.
Record both meter outputs via 4-20 mA HART into a paperless recorder — our SIT-6000R model logs timestamped data without dead zones. Calculate deviation as (Q_test – Q_master) / Q_master × 100. If deviation exceeds 0.5 % for DN40 magnetic meters in a Malaysian palm oil plant, the instrument team usually checks electrode coating first. We have seen conductive solids stick to PTFE liners and shift readings by 2–3 %.
Method 2: Gravimetric (Weigh Tank) for Custody Transfer
Where local regulations demand mass traceability — like LNG loading in Qatar or ethanol shipments in Brazil — a weigh tank benchmark is the final word. Divert the flow into a calibrated tank on load cells. Measure the total collected mass and compare against the integrated mass from the meter. For oval gear meters on diesel loading skids in Kenya, we often run a 500-litre batch. A 200-tonne weighbridge gives ±0.1 % resolution for bitumen loading, but you need to account for temperature and vapour return. The standard is OIML R117 for liquids other than water.
Field truth: In a hot Middle Eastern afternoon, the weigh tank vent can release volatile vapours and throw off the mass balance by 0.8 %. Silver Instruments field technicians always close the vent cycle and measure return vapour temperature with a PT100 probe. This one detail saved a chemical exporter in Oman from a $12,000 billing dispute.
Method 3: Clamp-On Ultrasonic as a Portable Reference
When cutting into a live line is not allowed — like a seawater desalination RO feed in Saudi Arabia — we deploy a portable clamp-on ultrasonic flow meter. Our SIT-UF1000 portable kit straps onto DN50–DN300 pipes and calculates transit time difference with 0.5 % repeatability. You input pipe material (carbon steel, schedule 40), wall thickness, and fluid sound speed. Couplant gel fills the gap between probe and pipe. Hold the signal strength above 60 % for a valid reading. Compare the ultrasonic totaliser against the permanent magnetic flow meter for one-hour batch and check if the deviation is under 1.5 %.
Engineers in Chile use this method on copper slurry lines because replacing a worn vortex meter mid-season would cause downtime. We advise checking the unit under test at two flow rates — the normal operating rate and a low-flow night shift rate — because magnetic meters often drift at flows below 0.5 m/s.
Vortex and Thermal Mass Meter Field Checks
For vortex and thermal dispersion meters on compressed air or biogas, field benchmarking uses a master thermal meter or a hot wire anemometer as reference. In a brewery wastewater biogas line in South Africa, we cross-checked a vortex meter against a portable thermal mass meter inserted through a 1/2-inch ball valve hot-tap. Gas compositio
Step-by-Step Checklist for Any Field Benchmark
1. Verify process stability — no pump start/stop, no pressure surges for 15 minutes.
2. Read process parameters: fluid temperature, pressure, viscosity — for Coriolis meters, viscosity above 50 cP may shift zero.
3. Record reference meter serial number, last calibration date, and uncertainty.
4. Capture at least 200 data points for each set point (use a paperless recorder, not a multimeter).
5. Repeat the cycle twice. Look for hysteresis — a common sign of a sticky oval gear pair or a fouled ultrasonic transducer.
6. Calculate deviation, uncertainty budget, and decide if a correction factor is needed.
7. Document in a calibration log with date, technician, and ambient temperature.
When Field Benchmarking Is Not Enough
If the deviation exceeds your MPE (maximum permissible error) and cleaning or re-zeroing does not help, remove the meter for factory recalibration. For ATEX Zone 1 meters in ethanol storage, you cannot open the housing on site. Our service centre in Nanjing can recalibrate your Coriolis or magnetic meter with an ISO 17025 certificate within 7 working days. Send us the tag number, fluid, and flow range for a turnaround quote.
Contact Silver Automation Instruments for Flow Meter Support
Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range for a specific field calibration procedure or a pair of master meters. Email: [email protected]
Tel: +86-25-68650347
Whatsapp: +86-25-52155837
WeChat: +86 15365082610
Our engineers work with plants in Jakarta, Lagos, Doha, Santiago, and Durban every week. We ship clamp-on ultrasonic reference kits ready to use with a calibration certificate inside the foam-cut hard case.
FAQ: Flow Meter Field Benchmarking
Q: Can I use a cheap clamp-on meter as a master for a 0.2 % custody transfer meter?
A: No. A typical clamp-on ultrasonic meter has 1 % of reading accuracy. It is enough to verify a magnetic meter at 0.5 % spec, but not enough to certify a Coriolis meter for LNG sales. Use a Coriolis master meter or a weigh scale with better than 0.05 % uncertainty for custody transfer.
Q: How often should I field-benchmark our flow meters?
A: For custody transfer meters, once per quarter is a common interval in OIML R117-guided plants. For internal process meters, once a year or during plant turnaround. If you suspect drift — because the dosing pump is suddenly overdosing by 2 % — run a benchmark check immediately.
Q: Does temperature affect the master meter comparison?
A: Yes. For volumetric meters like oval gear, the fluid expansion matters. Diesel at 45 °C has 2 % more volume than at 15 °C. Write down fluid temperature and correct to base conditions using API tables. Coriolis masters measure mass directly, so temperature effect is minimal if zero is stable.
Q: Can I use a turbine meter as a master meter for viscous fluids?
A: Not unless you confirm the Reynolds number range. A turbine meter loses linearity if the fluid viscosity exceeds 5 cP. For heavy fuel oil at 200 cP, use a positive displacement master (oval gear) or a Coriolis meter. Silver Instruments oval gear meters with PPS gears handle 1–2000 cP without slip correction.
Q: What do I do if I have no reference meter at all?
A: You can do a rough check with a volumetric proving can and a stopwatch. Collect flow in a calibrated vessel of known volume and measure the time. This gives you average flow rate with about 2 % uncertainty. For a more reliable check, rent a portable clamp-on ultrasonic from us. We ship to 60 countries with DHL Express. Email us the pipe OD and material.
