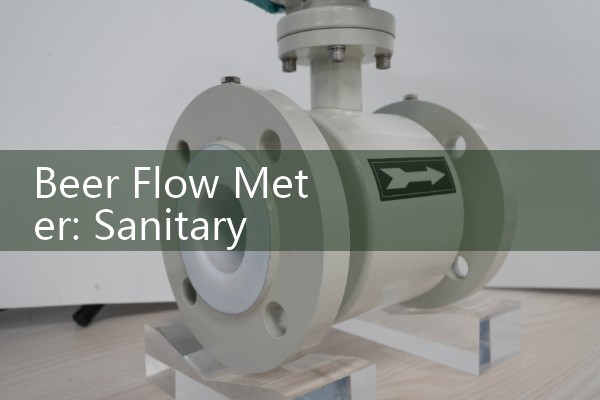

Beer Flow Meter: Sanitary Dispensing and Keg Volume Monitors
Quick Answer: For beer dispensing and keg volume monitoring, you need a sanitary flow meter with tri-clamp connections, CIP tolerance, and high repeatability. Silver Automation Instruments supplies Coriolis and electromagnetic meters that achieve ±0.1% to ±0.5% accuracy on small lines from DN10 to DN50. Send your pipe size, flow range, and cleaning temperature to [email protected] for a specific quote.
Why Accuracy Matters in Keg Filling
A 30‑liter keg that is overfilled by 0.5 liters loses profit per batch. Underfilling risks customer complaints. Most craft breweries in Australia, Southeast Asia, and the Middle East target fill deviation below 0.2 liters. A sanitary Coriolis mass flow meter directly measures mass and volume, ignoring foam or temperature changes. Our clients in Thailand and Vietnam use these meters to hit ±15 gram repeatability on 30 kg fills.
Daily Challenges in a Brewery Environment
Beer is viscous and foamy. Turbine or paddlewheel meters often fail because foam disrupts the blades. After every shift, the line undergoes CIP at 85°C to 130°C with caustic chemicals. Only a full‑bore, sanitary design survives this cycle without leaks or bacterial growth. Silver Instruments meters feature 316L stainless steel, Ra ≤ 0.8 µm surface finish, and EHEDG‑compliant gaskets. No dead legs. No threads inside the wetted path.
Recommended Flow Meter Technologies
For direct mass flow, batch control, and density measurement, pick a Coriolis meter. Our SCM series covers DN10 to DN50, handles flow from 0.08 kg/min to 250 kg/min, and outputs 4‑20 mA, pulse, and Modbus. Many breweries also choose sanitary electromagnetic flow meters for simple volume tracking. These have no moving parts, no pressure drop, and work well with conductive liquids like beer (conductivity above 5 µS/cm). Both types connect with standard tri‑clamp or DIN 11851 fittings.
Here is the thing. Some operators try to save cost with a turbine meter. But after three CIP cycles, the bearings swell and accuracy drifts. We have seen this many times. A microbrewery in Indonesia called us after their turbine meter failed in week one. They replaced it with a Silver Instruments electromagnetic meter, DN15, 4‑20 mA HART with display. Now they fill 20‑liter and 30‑liter kegs with ±0.1 liter repeatability, and cleaning run
Keg Volume Monitoring and Data Logging
Breweries need to know exactly how much beer is in each keg for inventory and tax reporting. The flow meter sends a pulse per liter or per 10 milliliters to a PLC or a paperless recorder. Silver Instruments offers the SVR series paperless recorder that logs flow, temperature from PT100, and batch totals. You can export CSV files via USB or Ethernet. A brewpub chain in the Philippines uses this setup to track daily output across four locations. The manager checks the log each morning, compares it to sales, and spots inconsistency immediately.
Getting a Quote and Technical Selection
We do not sell one‑size‑fits‑all. Every brewery line differs in temperature, viscosity, cleaning protocol, and pipe size. Send us your process data: pipe inner diameter (DN), beer temperature at filling (typically 1‑4°C), CIP temperature and duration, flow range in liters per minute, and signal preference (4‑20 mA HART, pulse, Modbus). Also mention if you need a local display or batch preset. Contact us at [email protected], tel +86-25-68650347, WhatsApp +86-25-52155837, or WeChat +86 15365082610. We typically reply within 24 hours with a datasheet and price.
FAQ
Can the flow meter survive CIP and SIP conditions? Yes, our sanitary meters are built for 130°C continuous and chemical exposure. The process connection gaskets use FDA‑approved EPDM or FKM.
What accuracy can I expect on small keg fills? With a Coriolis meter, mass repeatability is ±0.05% to ±0.1% of rate. For a 30 kg fill, the error stays below 30 grams. Electromagnetic meters offer ±0.2% to ±0.5% of reading.
Do I need a straight pipe run? Most sanitary Coriolis meters do not require long straight runs. Electromagnetic meters need 5D upstream and 3D downstream. We help verify your layout.
Which certifications do your meters carry? Our sanitary series complies with 3‑A and EHEDG guidelines. Some models have ATEX certification if you handle high‑alcohol vapor areas, but this is rare in standard breweries.
How can I integrate the meter into my batching system? All meters output pulse per volume unit and 4‑20 mA. You can connect directly to a PLC or to our paperless recorder for local batch control. We provide Modbus RTU map and wiring diagram.
